Constraint Snippets

The following features can be used in DVT to generate new constraints:

To customize the way a generated constraint looks you can edit the constraint_implementation or constraint_prototype code templates.

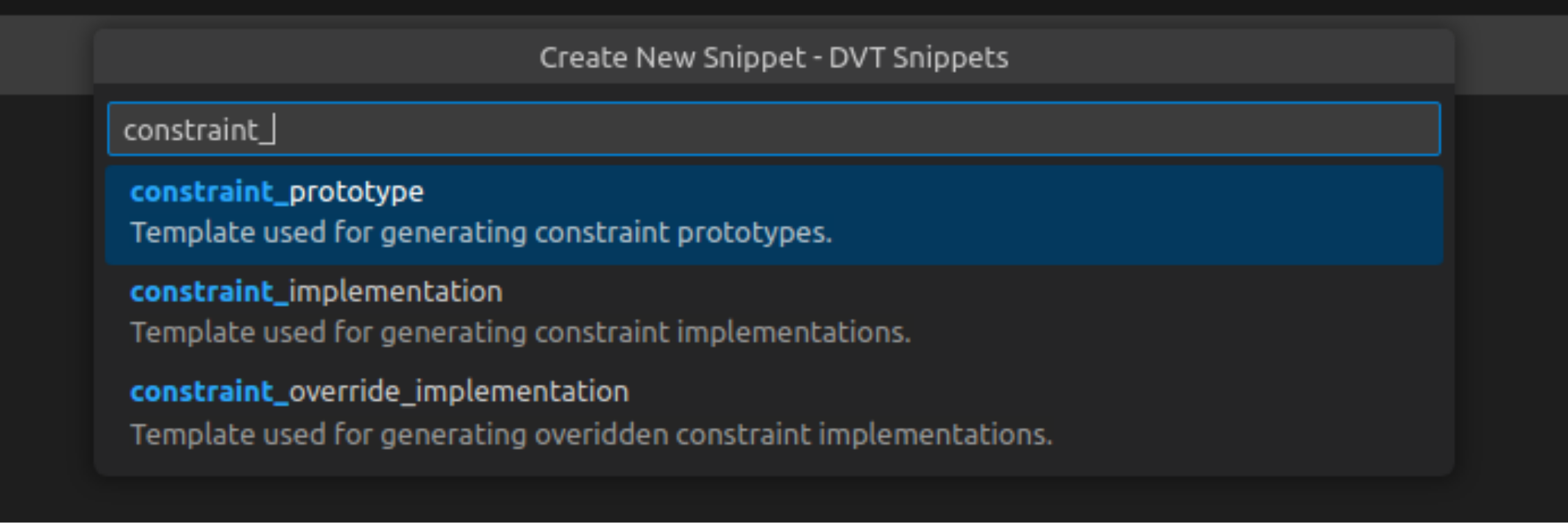

../../_images/vscode_sv_constraint_snippets.png

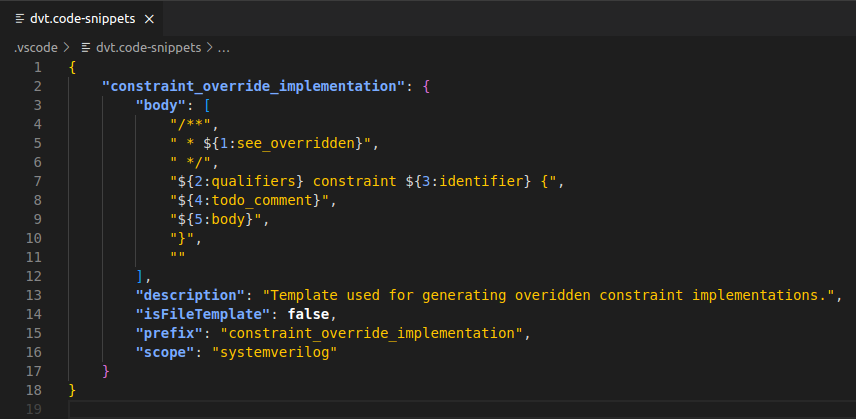

../../_images/vscode_sv_constraint_implementation_snippet.png

${qualifiers}: Can be static or empty.
${identifier}: Constraint name. Includes class_name:: qualifier for extern constraint implementations.
${todo_comment}: Comment inserted inside the constraint block.
${body}: The body of the constraint.

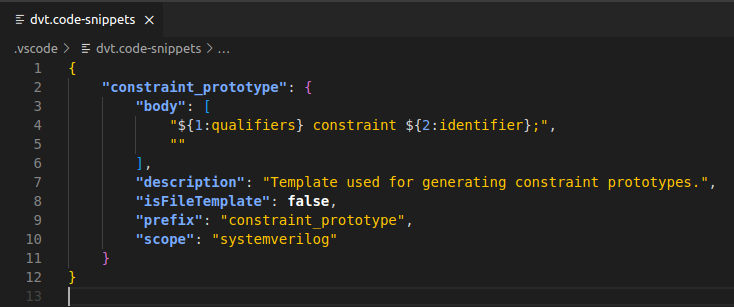

../../_images/vscode_sv_constraint_prototype_snippet.png

${qualifiers}: Extern, static or both. Can be empty.
${identifier}: Constraint name.

Note

When a snippet is auto-generated, you may use either the placeholder (${index:var}) or variable (${var}) format. However, to also take advantage of content assist snippets, the placeholder format is recommended.
